Ultra-Drain Guard® Adjustable Frame Storm Drain Filter 20" to ...

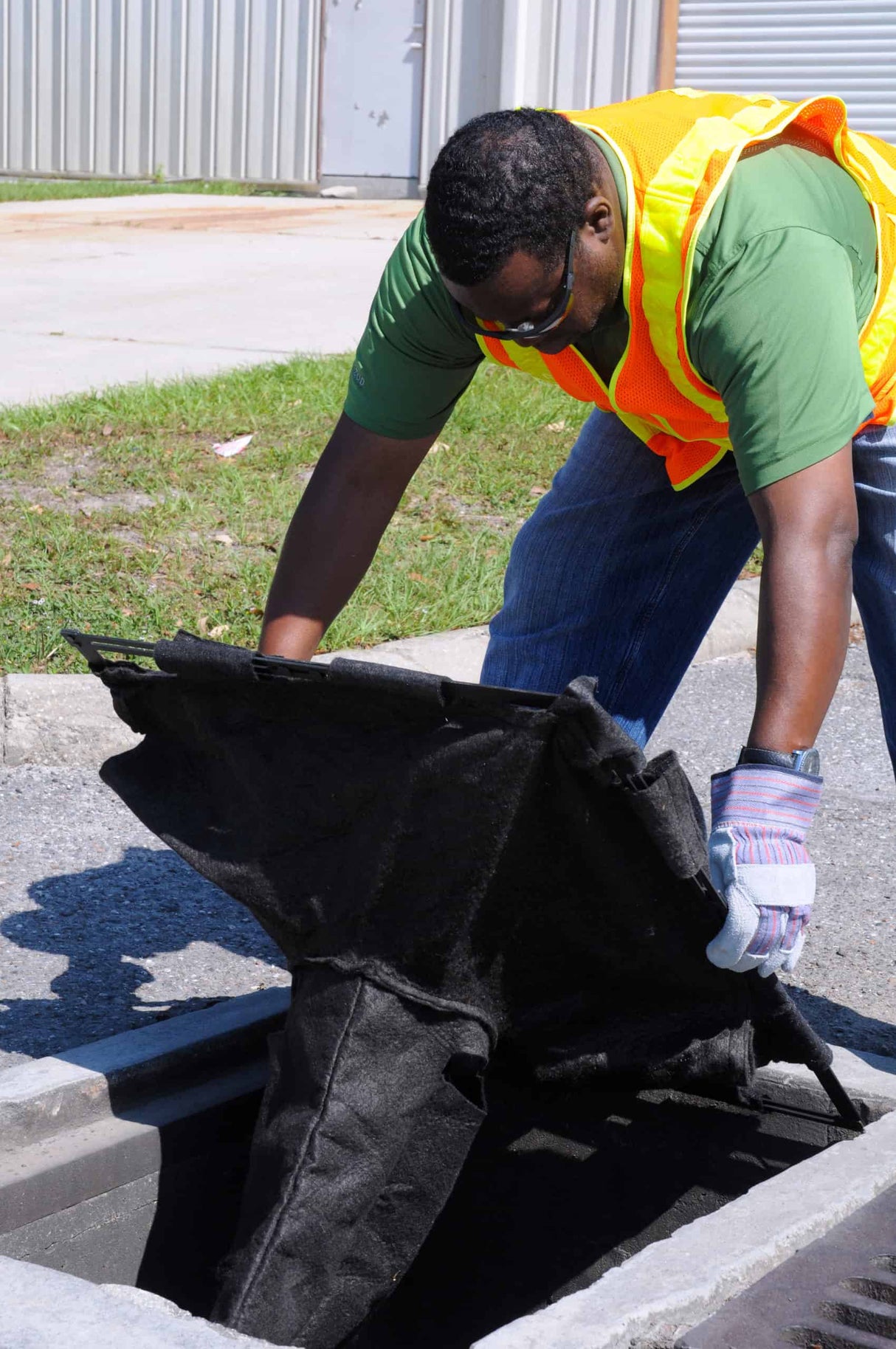

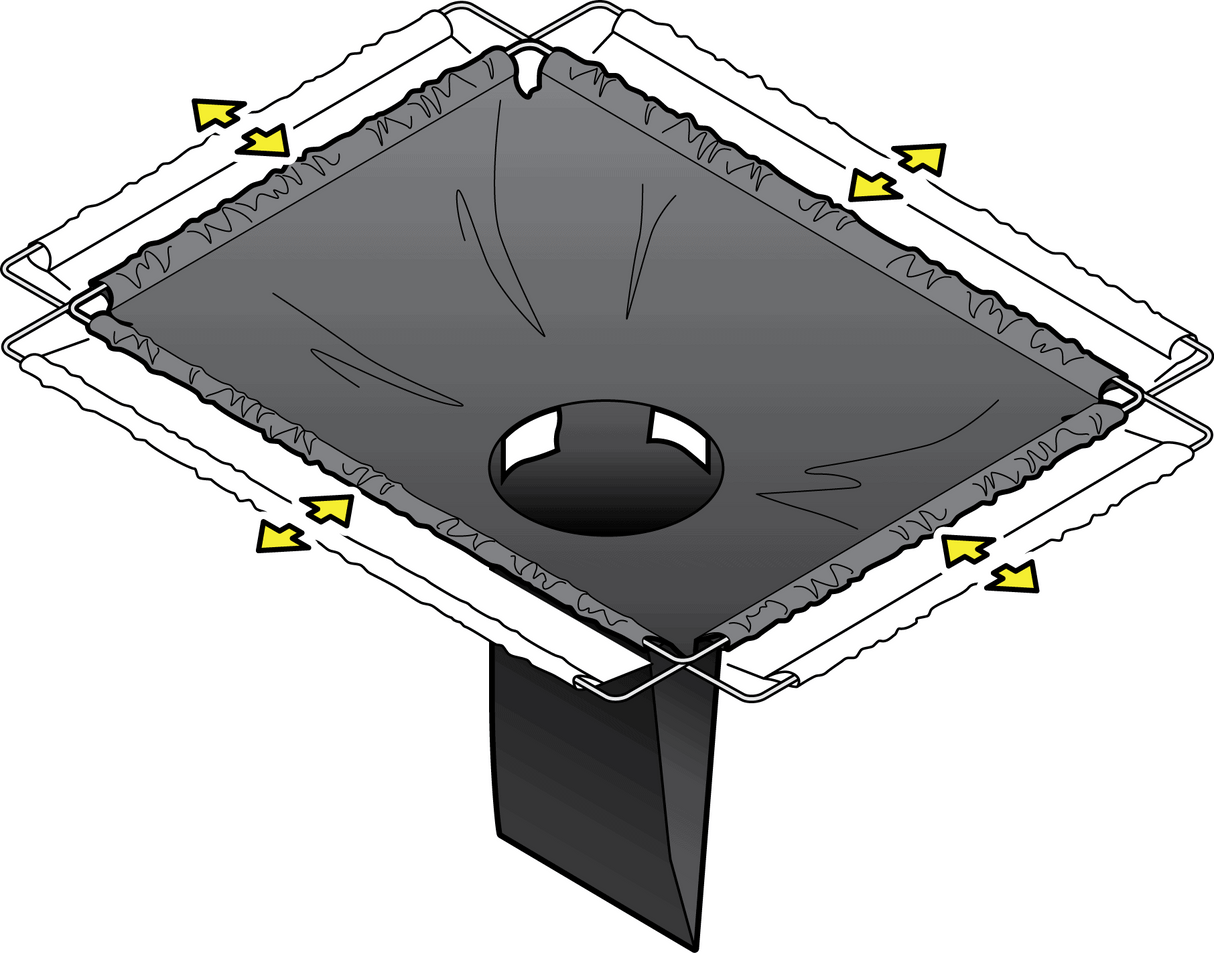

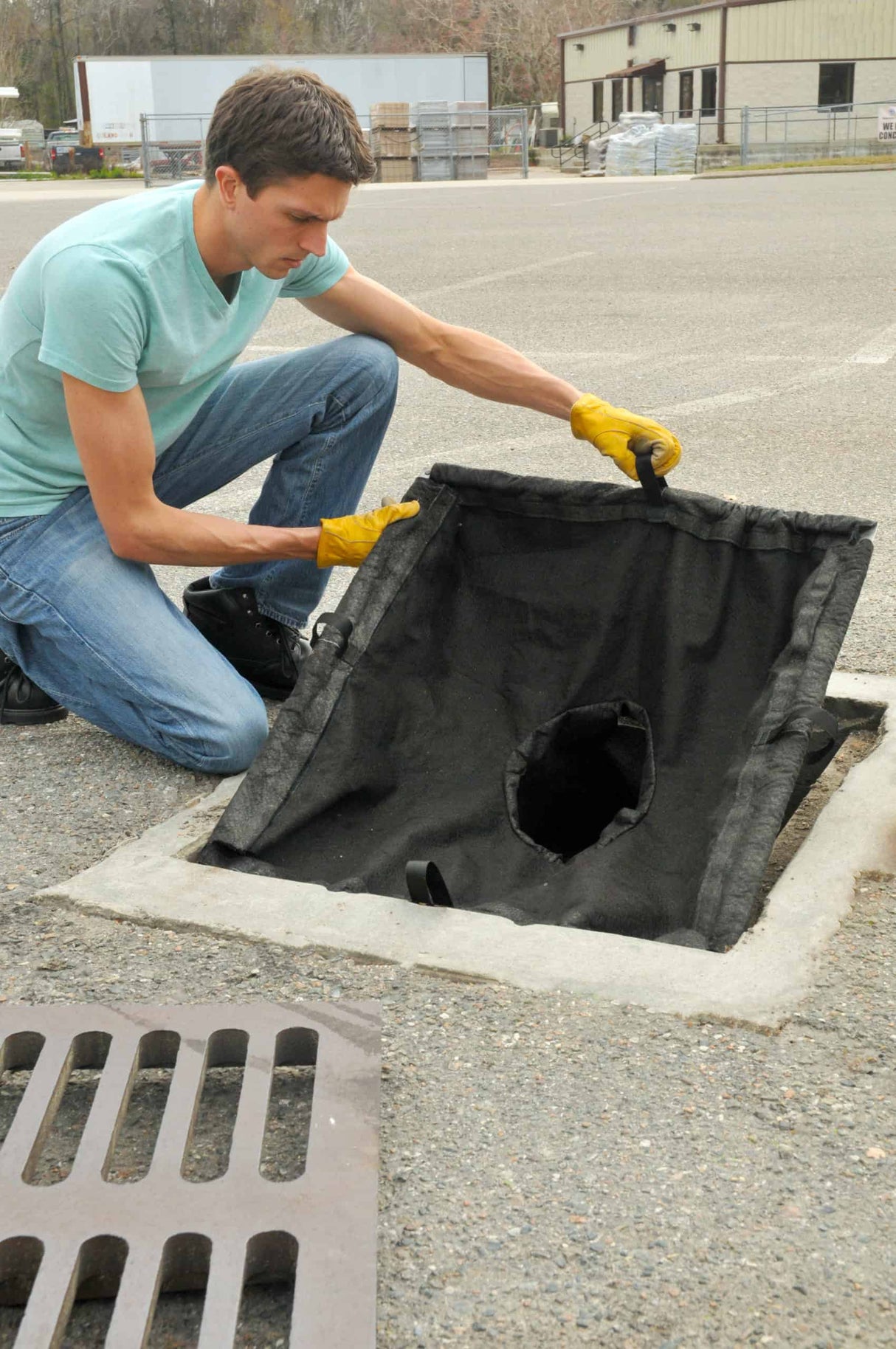

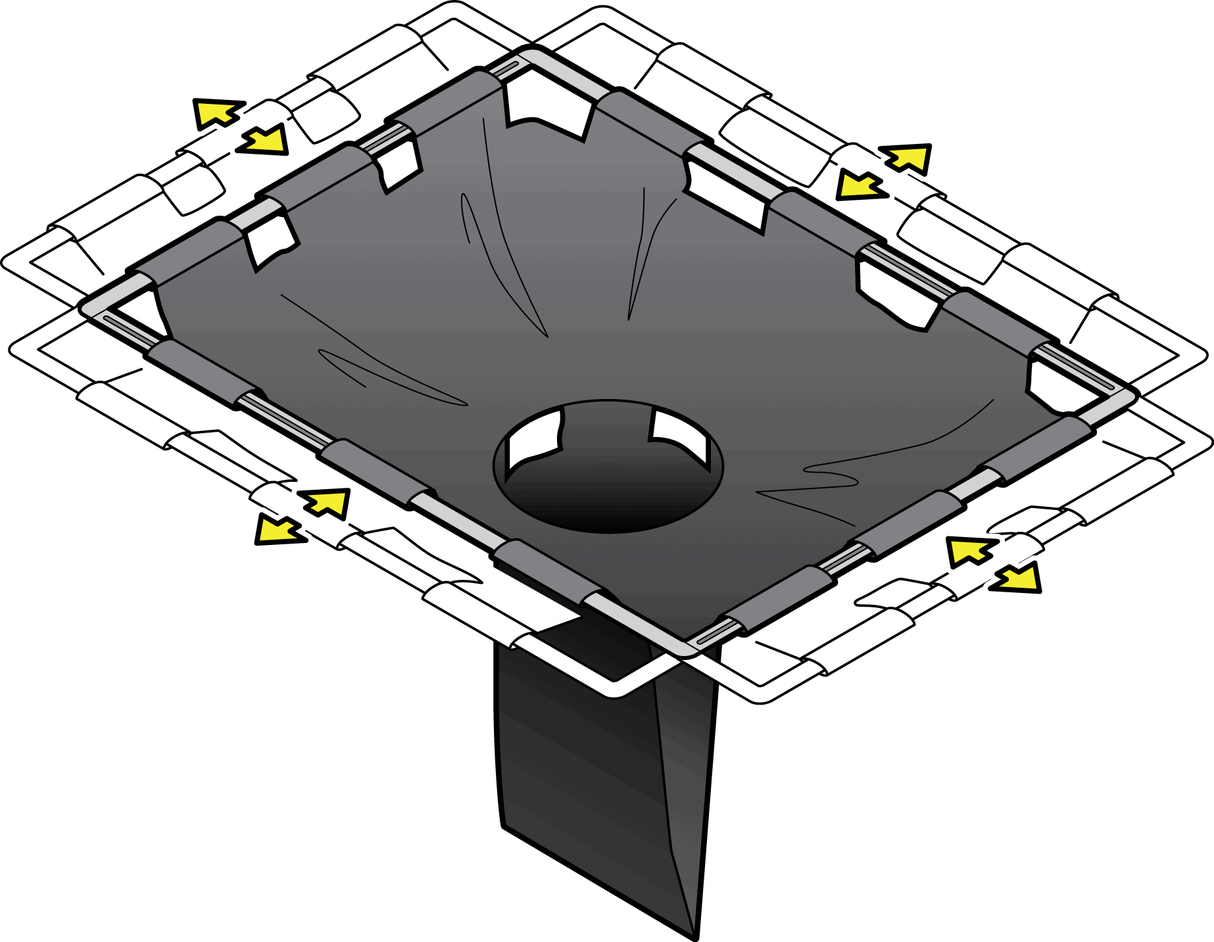

The Ultra-Drain Guard, featuring both Heavy Duty Adjustable and Economy Adjustable Frame Models, offers a versatile stormwater management solution designed to fit a variety of storm drain sizes without the hassle of excess fabric trimming. This product secures firmly in place, even when the grating is removed, thanks to its adjustable steel frame that can quickly resize to meet different requirements. Capable of removing up to 0.5 gallons of hydrocarbons as well as dirt, sand, and other contaminants, it promotes a cleaner environment and complies with strict stormwater management regulations.

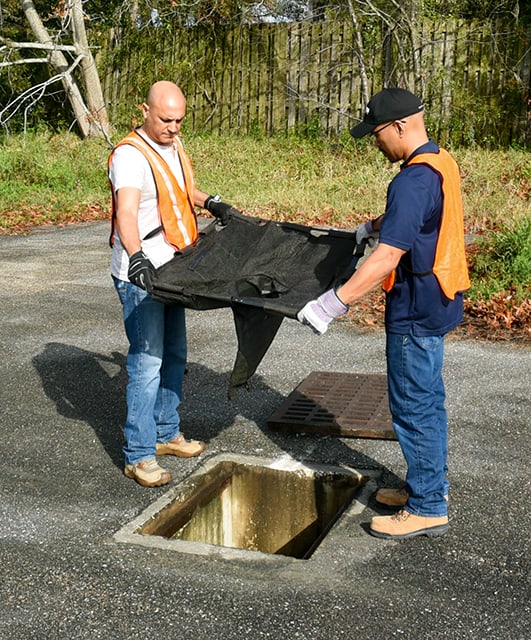

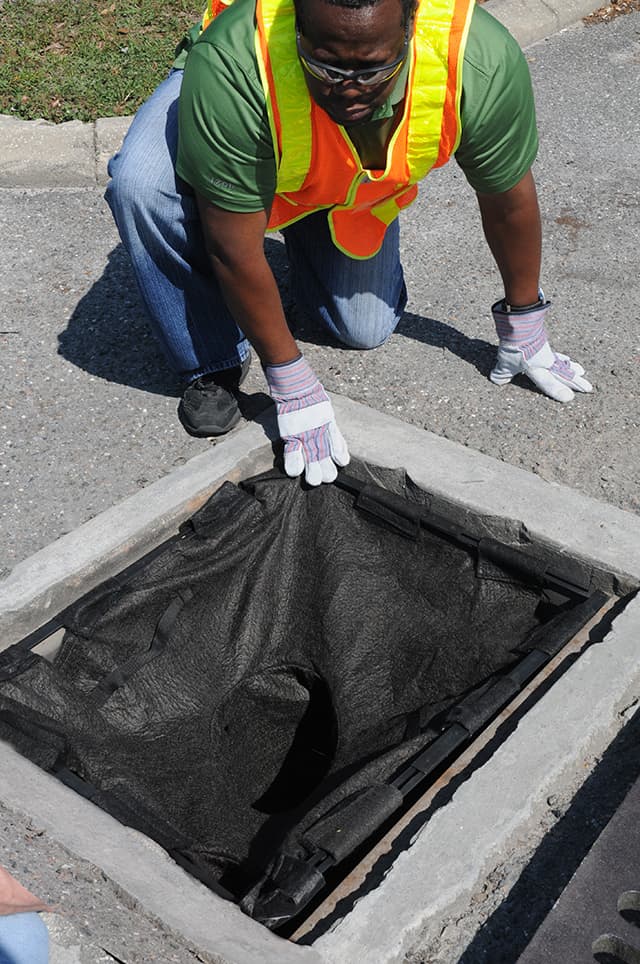

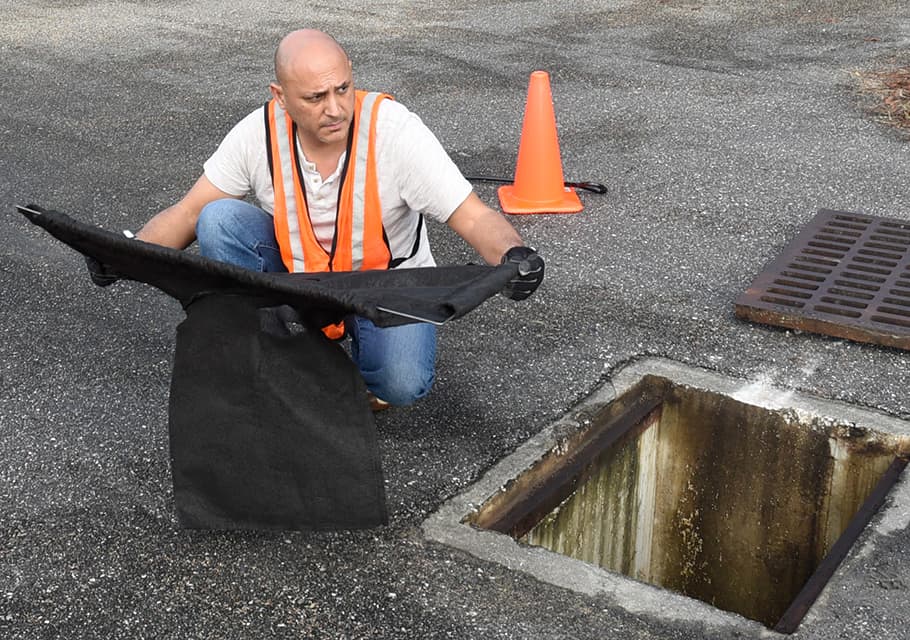

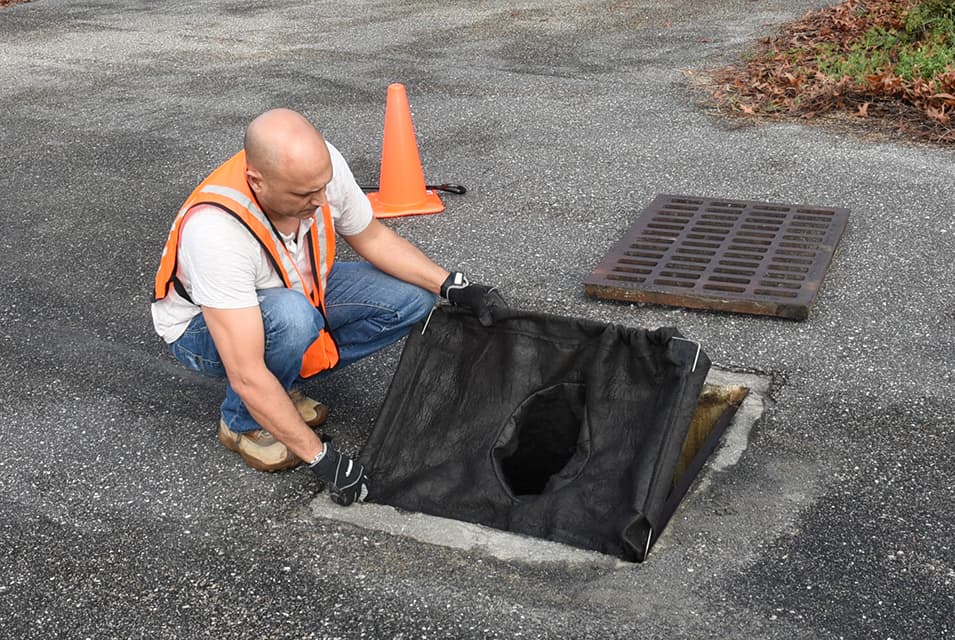

With heavy-duty construction and optional overflow ports, the Ultra-Drain Guard ensures optimal performance during heavy rains, preventing flooding and ponding. Its easy installation process, which requires no measuring or trimming, and the availability of replacement fabric, make it both practical and sustainable. Choose between non-reusable and reusable frame options to best suit your project needs and ensure a visually appealing setup with no visible excess material.
| Part # | Model | Quantity | Dimensions in. (mm) | Containment Capacity gal. (L) | Weight Capacity UDL lbs. (kg) | Weight lbs. (kg) |
|---|---|---|---|---|---|---|
| 8935 | Economy Adjustable Frame Model with Overflow Port | 1 | Min.: 16 x 20 x 18 (406 x 508 x 457), Max: 28 x 36 x 18 (711 x 914 x 457) | Up to 0.5 gal (1.9 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 2.6 (1.2) |
| 8936 | Economy Adjustable Frame Model with Overflow Port | 10 | Min.: 16 x 20 x 18 (406 x 508 x 457), Max: 28 x 36 x 18 (711 x 914 x 457) | Up to 0.5 gal (1.9 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 26 (11.8) |
| 8938 | Economy Adjustable Frame Model without Overflow Port | 10 | Min.: 16 x 20 x 18 (406 x 508 x 457), Max: 28 x 36 x 18 (711 x 914 x 457) | Up to 0.5 gal (1.9 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 26 (11.8) |

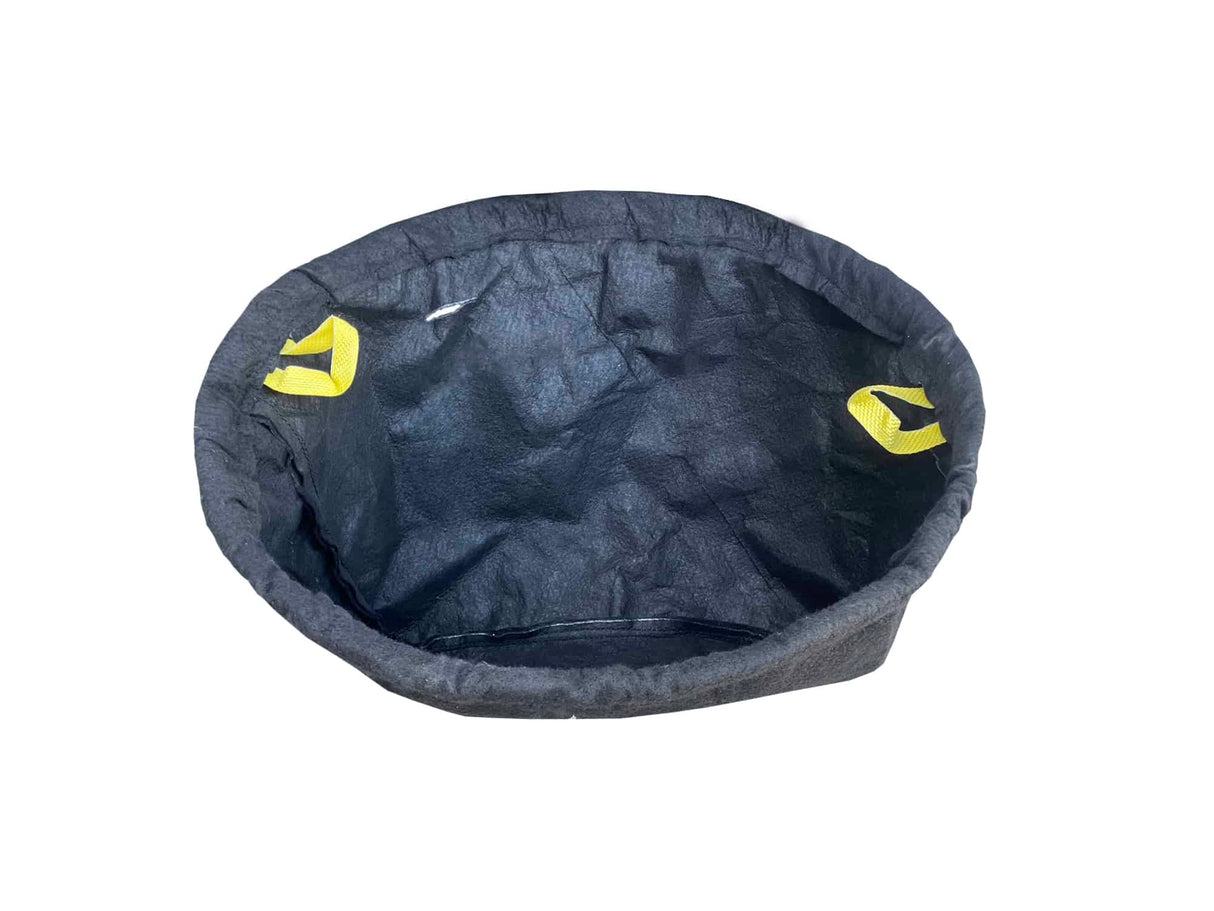

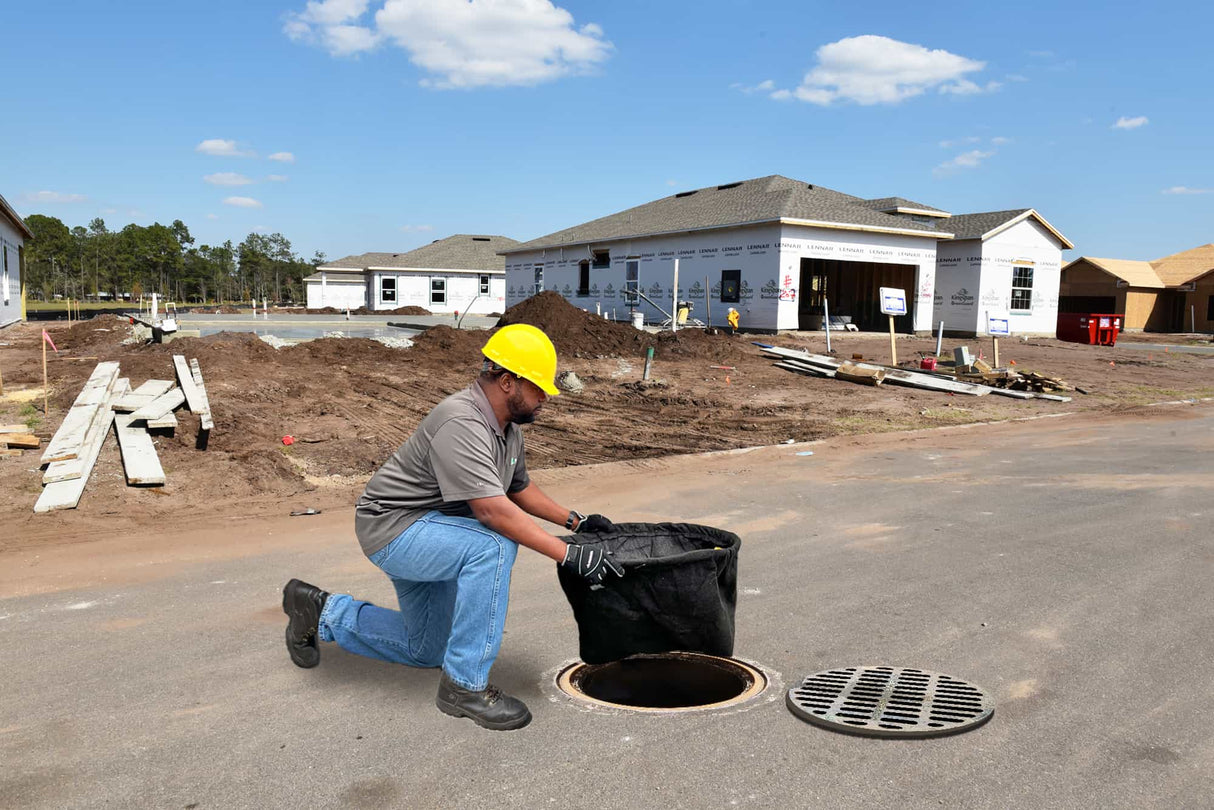

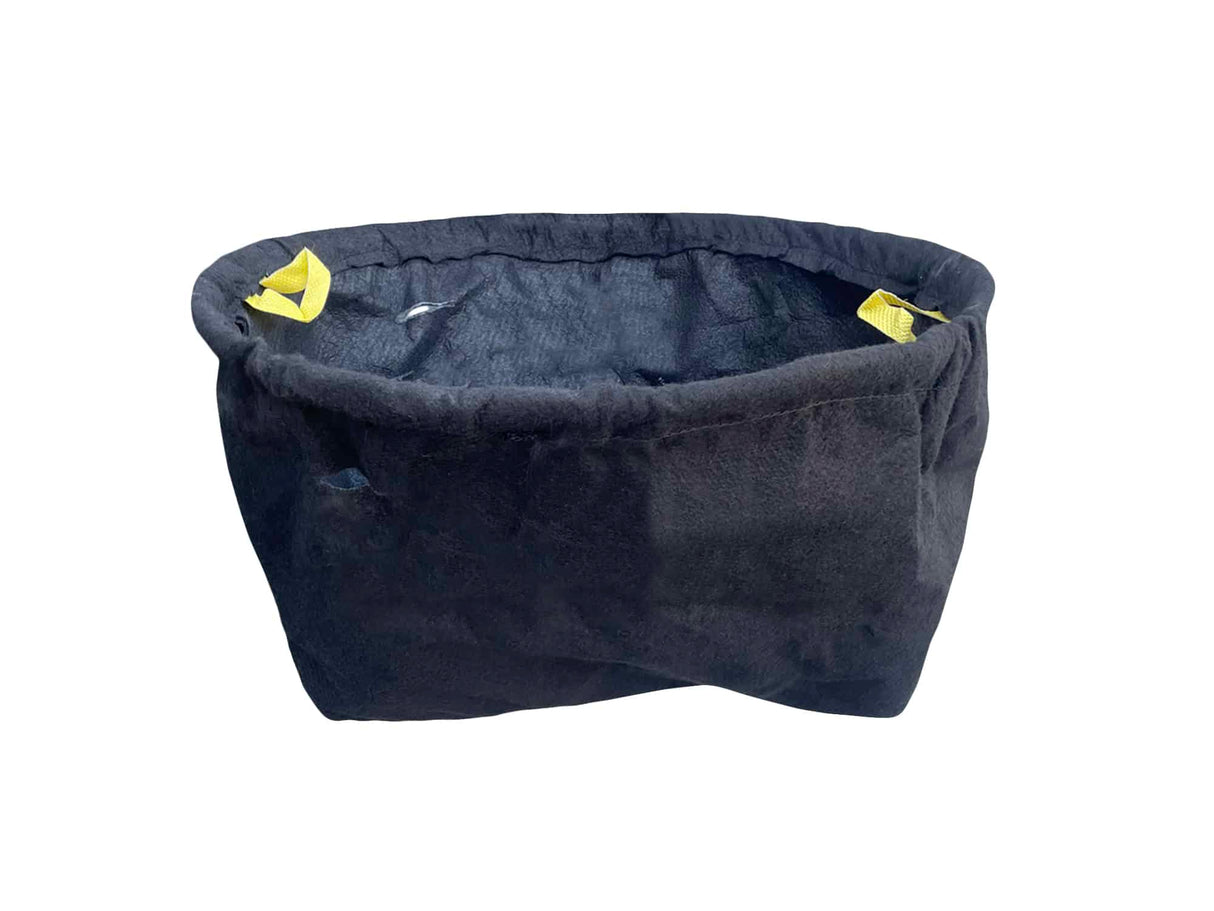

| 8920 | Economy Adjustable Frame Model (Round) | 1 | Min: 22 x 22 x 14 (558.8 x 558.8 x 355.6), Max: 25 x 25 x 14 (635 x 635 x 355.6) | Up to 0.5 gal (1.9 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 1 (0.45) |
| 8921 | Economy Adjustable Frame Model (Round) | 1 | Min: 25 x 25 x 14 (635 x 635 x 355.6), Max: 29 x 29 x 14 (736.6 x 736.6 x 355.6) | Up to 0.5 gal (1.9 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 2 (0.91) |
| 8930 | Heavy Duty Adjustable Frame Model | 1 | 16L x 20W x 18H (406 x 508 x 458) to 26L x 32W x 18H (660 x 813 x 458) | Up to 0.5 gal (1.9 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | - |
| 8931 | Heavy Duty Adjustable Frame Model | 10 | 16L x 20W x 18H (406 x 508 x 458) to 26L x 32W x 18H (660 x 813 x 458) | Up to 0.5 gal (1.9 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | - |
Frequently Asked Questions:
-
Is the frame reusable?
- Heavy Duty Adjustable Frame Model: Yes, the frame is reusable and supports easy replacement of the filter fabric.
- Economy Adjustable Frame Model: No, the frame is designed to be disposable along with the drain guard.
- Does the Ultra-Drain Guard capture hydrocarbons or just sediment and other solids? Yes, both models are designed to absorb oil, fuel, and other hydrocarbons (up to 0.5 gal) in addition to capturing sand, sediment, and other environmental contaminants, ensuring comprehensive stormwater pollution control.
-
Can I replace just the filter fabric without buying another frame?

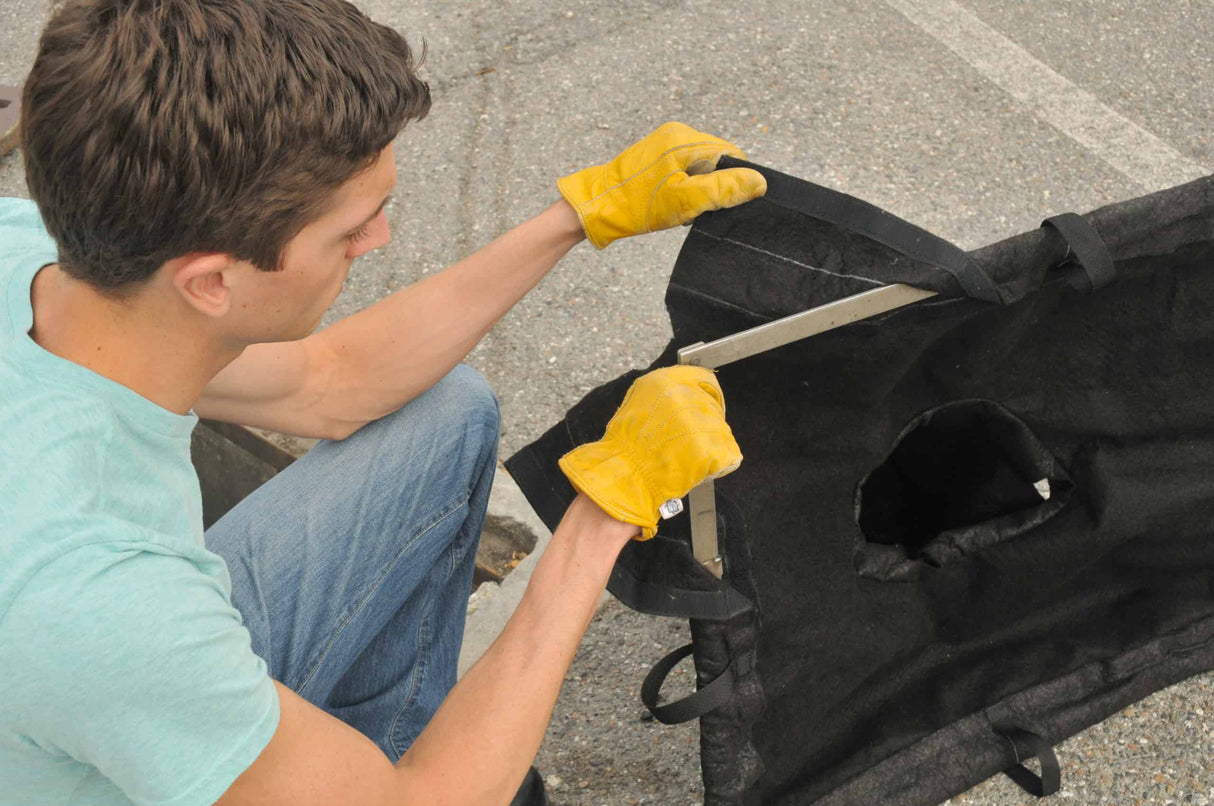

- Heavy Duty Adjustable Frame Model: Yes, replacement fabric is available separately, allowing for cost-effective and environmentally friendly maintenance.
- Economy Adjustable Frame Model: Replacement is not applicable as the frame is disposable.
- How much water can the Ultra-Drain Guard handle? Initially, the Ultra-Drain Guard supports a flow rate of 90 gpm/ft2, but with overflow ports, it can handle up to 770 gpm to prevent flooding during extreme rain events. This feature is essential for urban flood management and environmental compliance.
- How long will an Ultra-Drain Guard last? The durability depends on environmental conditions and pollutant levels. It's recommended to inspect the unit after significant rainfall to assess its condition and effectiveness in pollution prevention.
- Can the Ultra-Drain Guard be reused after it is filled with sand, silt, or sediment? Yes, under most conditions, it can be cleaned and reused, except when saturated with hydrocarbons, at which point it should be replaced to maintain functionality and environmental safety.

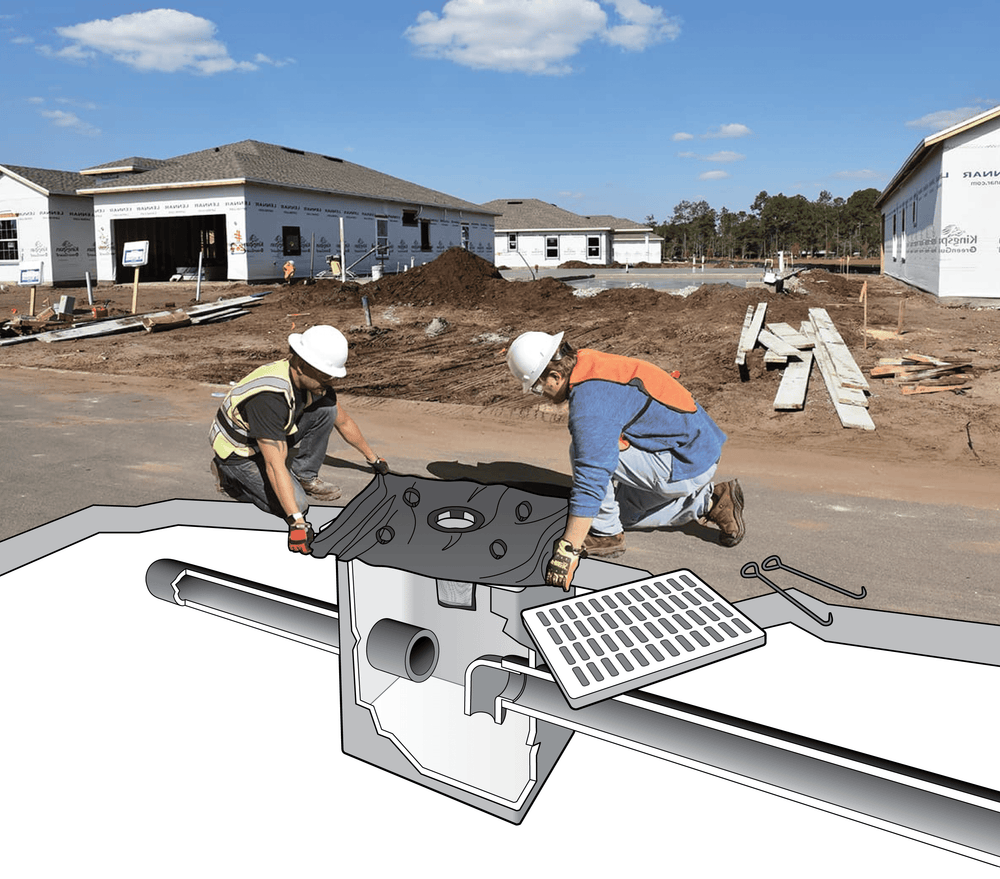

- Why choose the Ultra-Drain Guard with an adjustable frame? The adjustable frame ensures the guard stays securely in place even when the grate is removed, making it ideal for areas with frequent access requirements or maintenance needs. This feature significantly enhances the product's usability in dynamic urban environments.
Helps Comply with These Rules & Regulations
- Stormwater Management Regulation 40 CFR 122.26
- National Pollutant Discharge Elimination System (NPDES)
- Total Maximum Daily Load (TMDL)
WARNING: Part #8930 and #8931 can expose you to chemicals including nickel which is known to the state of California to cause cancer. For more information, please visit www.P65Warnings.ca.gov
